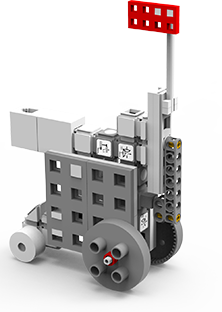

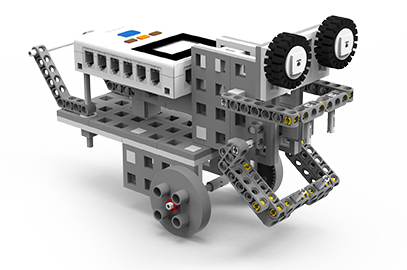

Flag Bot
Oscillating fan
Six faces attachable; limitless innovation

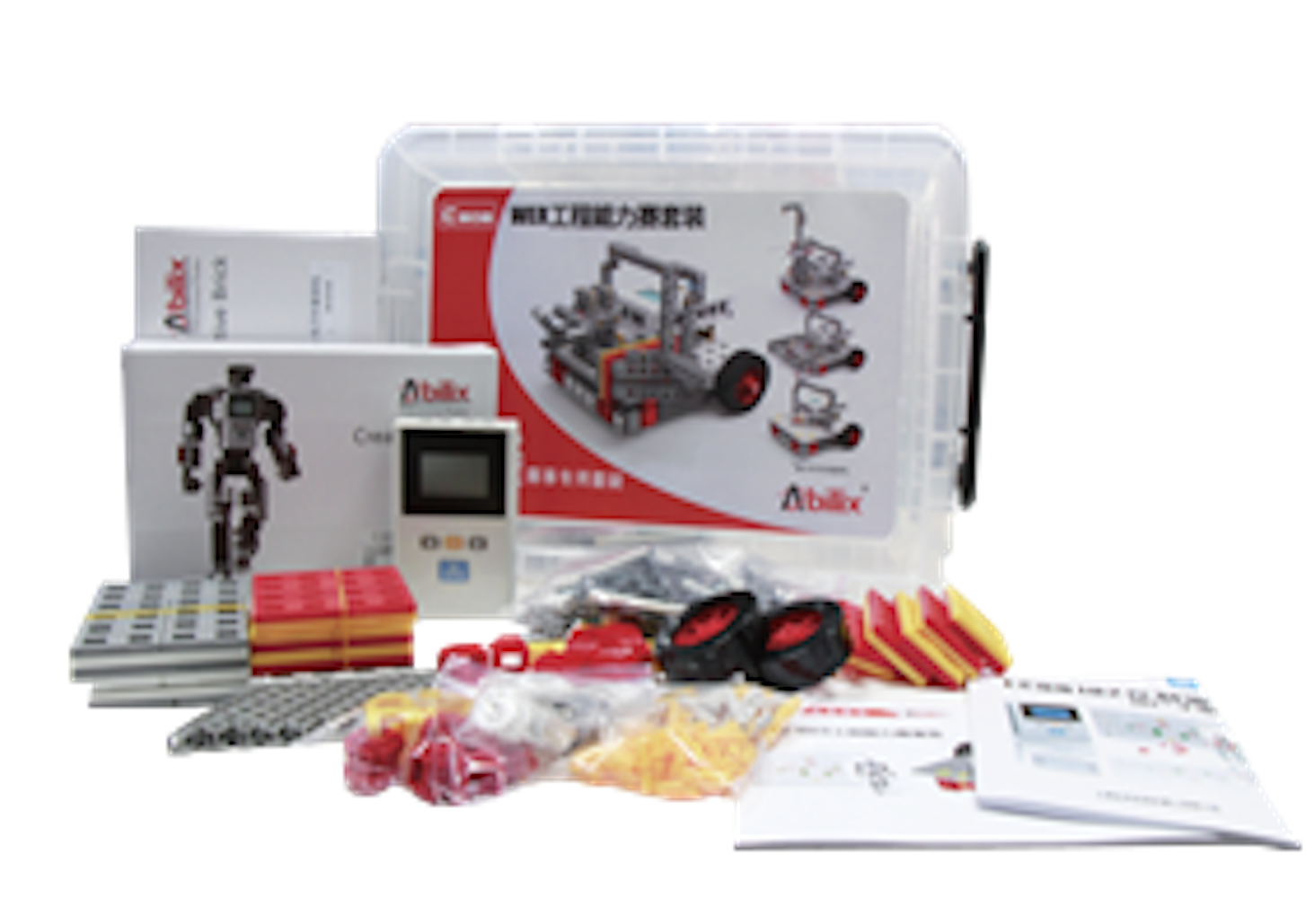

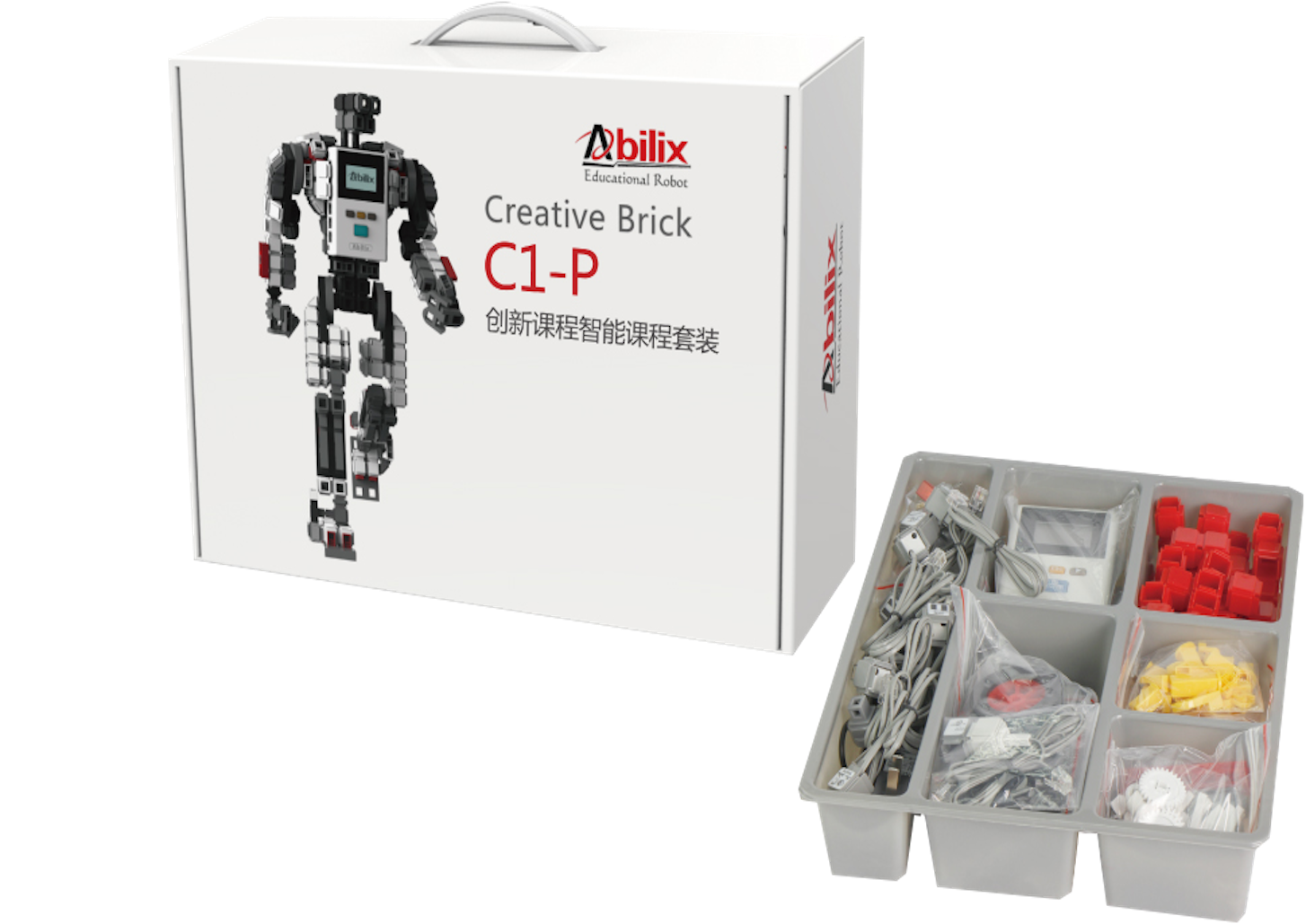

Taking cubes as basic “point” components, beams as basic “line” components and slabs as “plane” components, this series is integrated with the geometry principle of point, line and plane.C series was made to offer the possibility to set up various models with minimum pieces for maximal use. Students can come to a deeper understanding of the theoretical background by setting up realistic, individual models through practical experience, during which their hands-on and creativity ability also can be motivated.

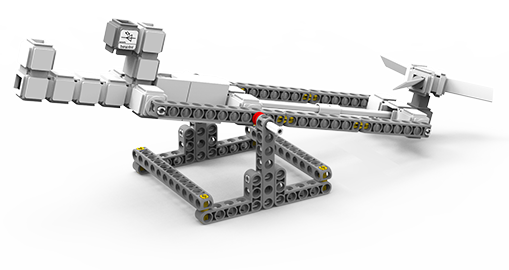

Wind-driven Seesaw
Mouth Open Beast

User Friendly Electronic Components

All electronic and mechanical components are modular design, the main components are integrated into the cube, which can realize three dimensional combination, do not need to use any screws or soft firmware can easily complete system set up.

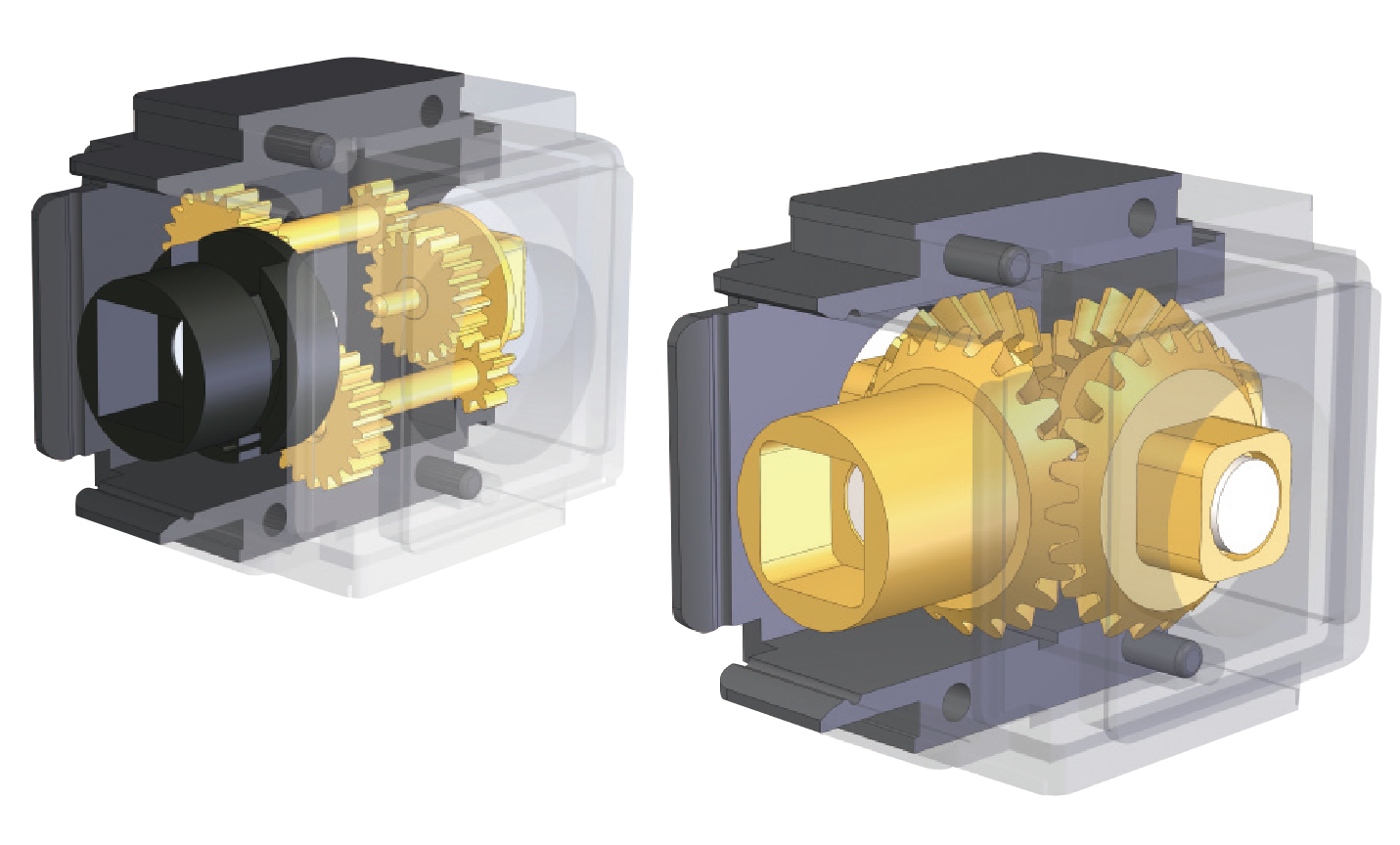

High Performance Transmission Parts

With various structure parts, connectors, transmission parts, and actuators, the models can be more professionals, which leave more room for students to create.

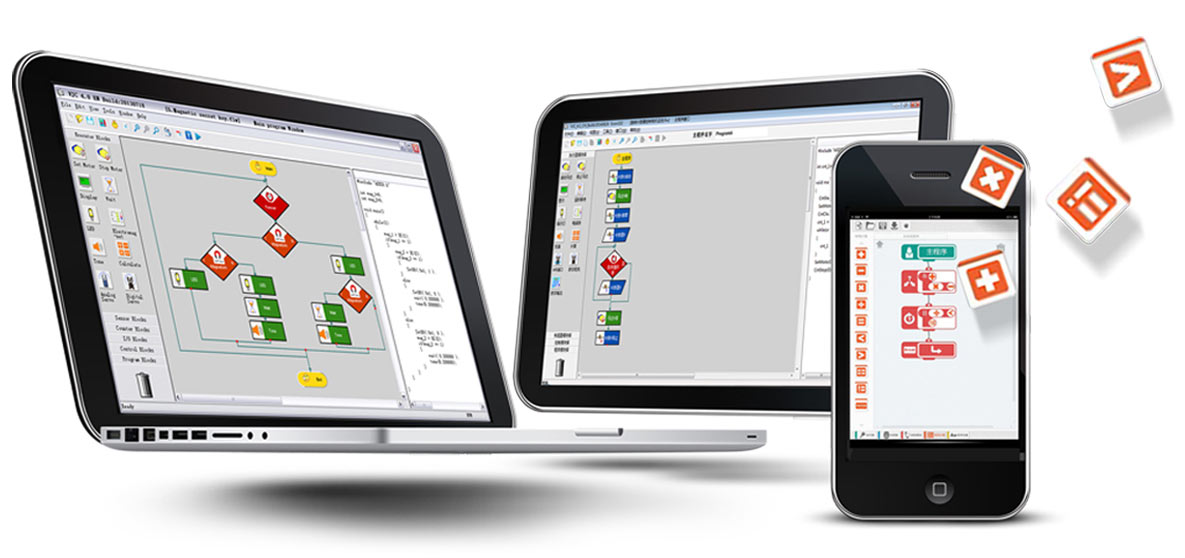

Easy-to-use VJC Software

As a graphical programming software which is specially designed for educational robots, VJC software supports both standard flowchart and C language programming. The flowchart can be converted to C language automatically, which makes it a solid choice for classroom teaching.

Programming "C-VJC 4.2" is based on both a graphical and a text interface. This software provides the following options: the ability to switch from the program building mode in the format of the flowchart to the text writing mode of the program in the programming language "C"; possibility of simultaneous viewing of modes of construction of the program in format of the block diagram and text writing of the program in the programming language "C". The intuitive interface of the program "C-VJC 4.2" allows users to first create simple programs, and then develop programming skills, making it possible to create complex multi-level programs and master the programming language "C".

The user interface "C-VJC 4.2" in the block-diagram mode allows to operate the user with the following set of units: start the motor, stop the motor, control the display, control the digital output, control the LED lamps, control the electromagnet, control the sound, the mathematical calculation unit, waiting, servo initiation, servo motor control unit, analog input control unit, data reading unit from the light sensor, data reading unit from the temperature sensor, data from the sensor of the shades of gray, the data reading unit from the fire sensor, the data reading unit from the sound sensor, the digital input control unit, the data reading unit from the controller buttons, the timer unit, the timer reset unit, the repeated operation loop unit, the endless loop of operations, a block of cycling operations with certain conditions, a logical block (if ..., then ...), a cyclic interrupt block, a new subprogram creation block, a subprogram end block, a program end block, a customization block (for writing your own code in the "C" language). The software for the basic set is delivered in English, Russian and Kazakh languages.Using the software may come with a fee by agreement (for a certain contract price).

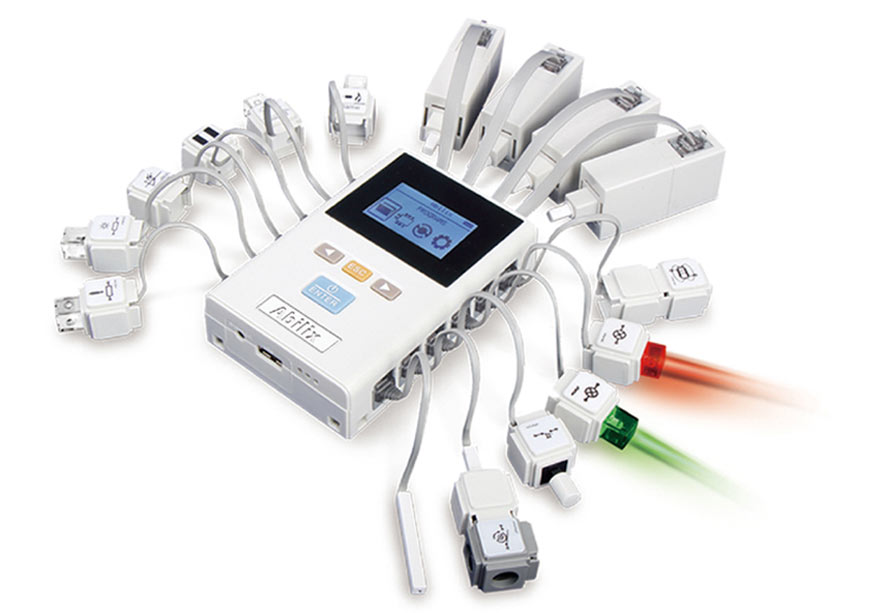

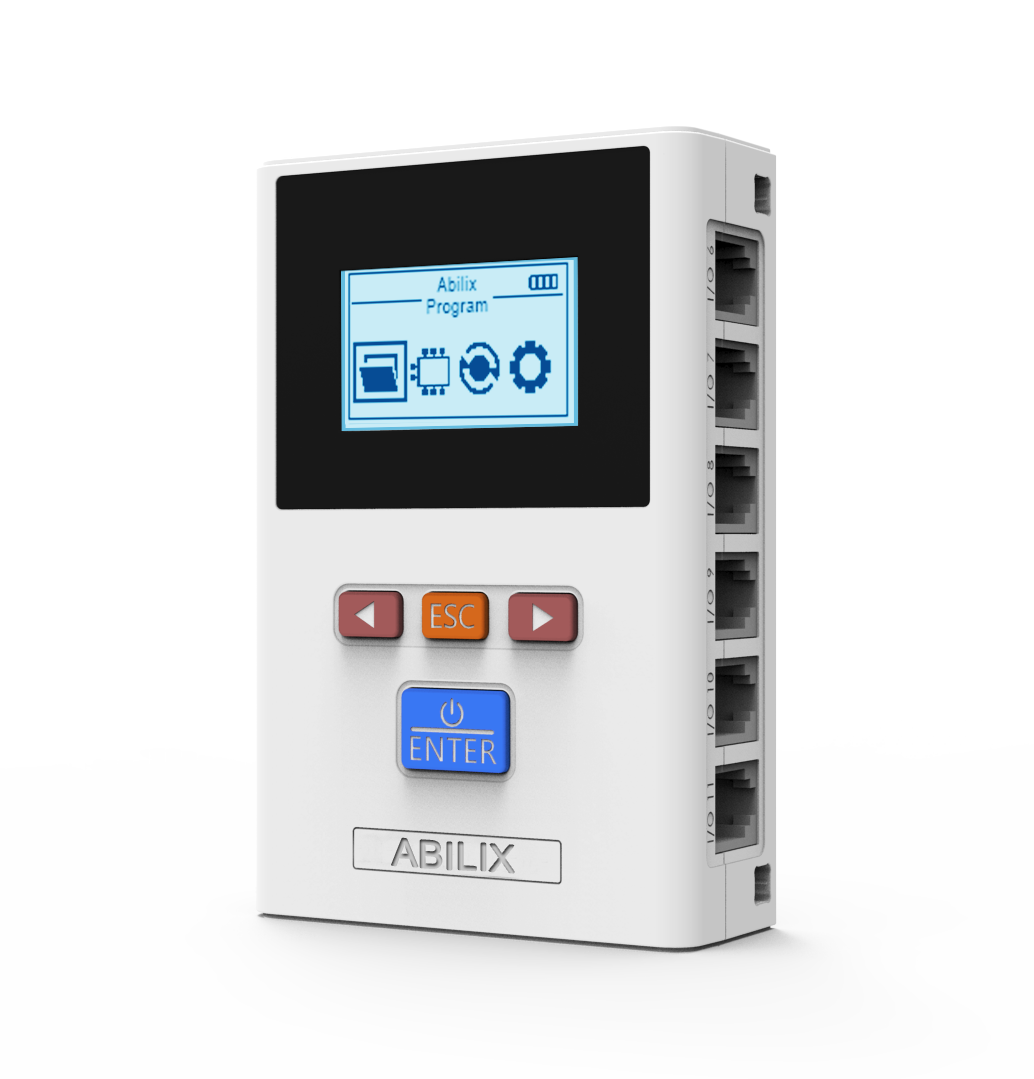

Strong & Powerful Controller

With abundant interfaces, the output and input ends can be tested on the controller directly.

Dedicated lithium battery 8.4V 1500MAH; maximum discharge current: 6A; built-in protection circuit.

4 motor ports, which can control motors’ speed, rotation orientation; maximum current that single port supports: 2A

Download via cable; Storage space: 3.96M
